Portable Wireless Monitoring Receiver – STR5000 Series

The STR5000 series products under Shinvicom (Xinweike Mai) integrate high-performance software-defined receiver modules with highly reliable rugged portable industrial control laptops. Featuring a robust structure and powerful functions, they can be deployed to build fixed or mobile monitoring stations in harsh environments.

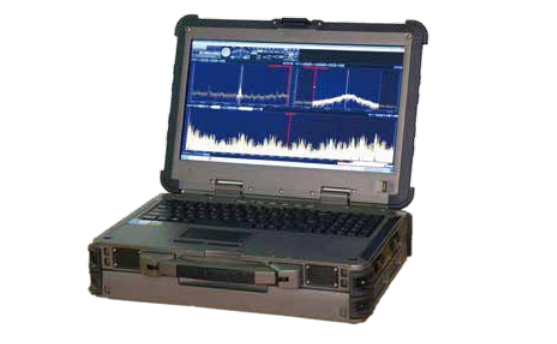

The system host adopts an all-aluminum alloy structure. The entire unit has undergone rigorous tests including vibration, shock, drop, high-low temperature resistance and aging tests, enabling it to adapt to various severe operating conditions. Its scientific and user-friendly design ensures the product boasts the combined advantages of high integration, compact size and ruggedness. The host is equipped with a high-performance 15-inch LED backlit LCD screen, a shockproof hard disk, various interfaces, a lithium battery, as well as high-efficiency power management software.

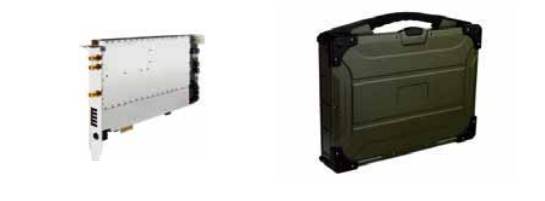

The core component of the system is a high-performance receiver module based on modern software-defined radio (SDR) technology, which incorporates innovative design concepts and high-end components. With a high level of software-defined functionality and outstanding performance, it has distinct technical advantages over comparable receivers in the market. The internal layout complies with stringent high-reliability EMC (Electromagnetic Compatibility) design standards, meeting technical requirements for electromagnetic compatibility and heat dissipation, and can effectively resist interference to the receiver from power supplies, computer systems and the external environment.

Using the accompanying application software and third-party development kits, users can conveniently build a variety of monitoring and control systems for different application scenarios. At present, a number of outstanding international and domestic software for radio monitoring, spectrum management and signal analysis are compatible with the STR5000 series receivers, such as WaveCom, PLATH/PROCITEC and go2MONITOR.

• Rugged portable industrial control computer
• High-performance & software-defined architecture
• Digital Down Conversion (DDC)
• 16-bit 100 MSPS analog-to-digital conversion
• Real-time spectrum analyzer
• Audio spectrum analyzer
• DDC broadband data recording and processing
• Continuously adjustable demodulation bandwidth with a minimum step size of 1 Hz
• Audio recording/playback
• High sensitivity & large dynamic range
• High frequency stability
